Pursuit 560-5

• The Alu-tech Body Shell is a structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
• It has a five part fully bonded exterior panel assembly system
• Upper body panels manufactured using superior bead application and laminating technology for a stronger bond
• Upper body panels built using a timber-free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner-wall lining
• Upper body panels cloaked in a single sheet of impact resistant GRP and an outer skin for extra durability
• It is supplied with a transferable 6 year body shell integrity guarantee and a transferable 3 year manufacturer’s components warranty
• An additional 4 year extension to the body shell integrity guarantee is available as a cost option
• It is EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
• It is European Whole Vehicle Type Approved and certified by the National Caravan Council to be European Standard compliant

SPACE

• Internal headroom of 1.96m (6'5") throughout the length of the caravan
• Body width of 2.23m (7'4")

FURNITURE & SOFT FURNISHINGS

• Bailey 'Walnut' furniture finish
• NEW construction front bed boxes with slide out double bed make up (model specific)
• NEW Beech sprung bed box tops for additional comfort (model specific)
• NEW bed make-up system on easy-glide track (model specific)
• Seat and back rest ventilation boards
• Free standing table with dedicated storage
• NEW large front window shelf
• NEW recessed front drawer and slide out occasional table (model specific)
• NEW drop down front table (model specific)
• NEW aircraft style overhead locker system with split level storage, domestic style metal hinges and chrome handles
• Structural locker dividers with greater load bearing capacity
• NEW dual finish Italian design overhead locker doors
• NEW solid domestic style washroom door with domestic metal handle
• NEW high-gloss kitchen and washroom worktop laminate
• NEW drop down kitchen worktop extension (model specific)
• NEW premium quality fixtures and fittings in polished chrome finish
• Foam filled upholstery featuring premium quality fabrics, high-density filling, superior cushion construction and deluxe sprung mattresses (model specific)
• NEW standard ‘Spice’ soft furnishings with co-ordinating lined curtains, arm rests or bolster cushions (model specific) and two standard size scatter cushions
• NEW optional Amaro soft furnishings with co-ordinating curtains, arm rests or bolster cushions (model specific) and four standard size scatter cushions
• Wood effect floor vinyl
• Loose fit drop in carpets

ELECTRICAL SYSTEM

• NEW 230v power supply with up to 5 interior sockets
• TV station with 230v, 12v and a minimum of one aerial socket
• 12v internal lighting system
• Centrally located electrical control panel
• Domestic style consumer unit with dedicated access door
• Switch mode battery charger with 20 amp output
• RCD/MCB protection for mains electric system
• 25 metre mains connecting lead

WATER & GAS SYSTEM

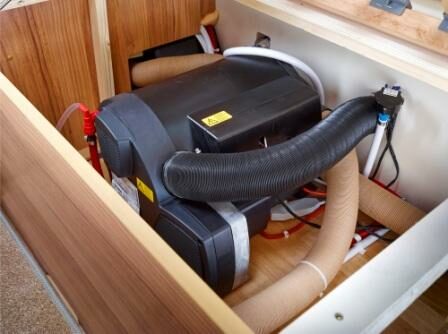

• NEW dual fuel Truma Combi boiler (2kw gas & 1.8kw electric) with a user friendly digital control panel that includes an adjustable fan speed and water boost functions
• Propane/Butane 30mb gas regulator mounted in gas locker compartment
• Whale premium pump (submersible)
• Inboard pressurised hot and cold fresh water system with reinforced hosing
• Inboard rigid pipe waste plumbing system
• NEW Stainless Steel circular kitchen sink and mixer tap, washing up bowl, drainer and chopping board
• Thetford C-260 cassette toilet with integrated header tank
• NEW inboard shower unit with ceramic ball mixer tap, Ecocamel shower head & bi-fold partition door
• NEW washroom hand basin and mixer tap

KITCHEN EQUIPMENT

• NEW Dometic 103 litre refrigerator with electronic ignition and detachable full width freezer compartment (capacity increases to 110 litres when freezer compartment is removed)
• Thetford Duplex combination oven and grill
• Thetford 3-burner gas hob incorporating a flush-fitting glass hinged lid and conveniently located controls

GENERAL EQUIPMENT

• Remis retractable fly screen and blinds to principal windows
• NEW Remis fly screen and splash-proof roller blind for kitchen and washroom windows

• AL-KO one piece galvanised steel chassis, braking system and running gear
• 13 pin DIN standard caravan connecting cable
• 14” alloy wheels
• Hartal two part exterior door with moulded interior liner and map pocket
• LED awning light with integral water management system
• Double glazed Polyplastic opening windows throughout
• Midi and mini Heki roof lights located throughout the main habitation area
• NEW centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
• Status 550 telescopic directional television aerial
• Twin front storage compartments (model specific)
• NEW distinctive duo-tone body shell colourways, in slate grey and polar white, with a co-ordinating contemporary graphics scheme

• WSL individually Laser Balanced, TUV tested styled alloy wheels fitted with 'Security' tyres and anti-tamper WSL Safety Bolts
• AL-KO Secure wheel lock receiver
• Optional AL-KO Secure portable wheel lock
• NEW caravan mud flaps
• NEW high security entrance door lock
• CRiS identity number anti-tamper labels attached to windows and inside gas locker
• Concealed security data chip within caravan construction
• Smoke alarm
• Carbon Monoxide alarm
