Pursuit 430-4

• The Alu-tech Body Shell is a structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
• It has a five part fully bonded exterior panel assembly system
• Upper body panels manufactured using superior bead application and laminating technology for a stronger bond
• Upper body panels built using a timber-free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner-wall lining
• Upper body panels cloaked in a single sheet of impact resistant GRP and an outer skin for extra durability
• It is supplied with a transferable 6 year body shell integrity guarantee and a transferable 3 year manufacturer’s components warranty
• An additional 4 year extension to the body shell integrity guarantee is available as a cost option
• It is EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
• It is European Whole Vehicle Type Approved and certified by the National Caravan Council to be European Standard compliant

Space

• Internal headroom of 1.96m (6’5”) throughout the length of the caravan
• Body width of 2.23m (7’4”)
• Internal floor space up to 10% larger
• Front seats up to 5% longer**
• Kitchen worktop space up to 10% larger

FURNITURE & SOFT FURNISHINGS

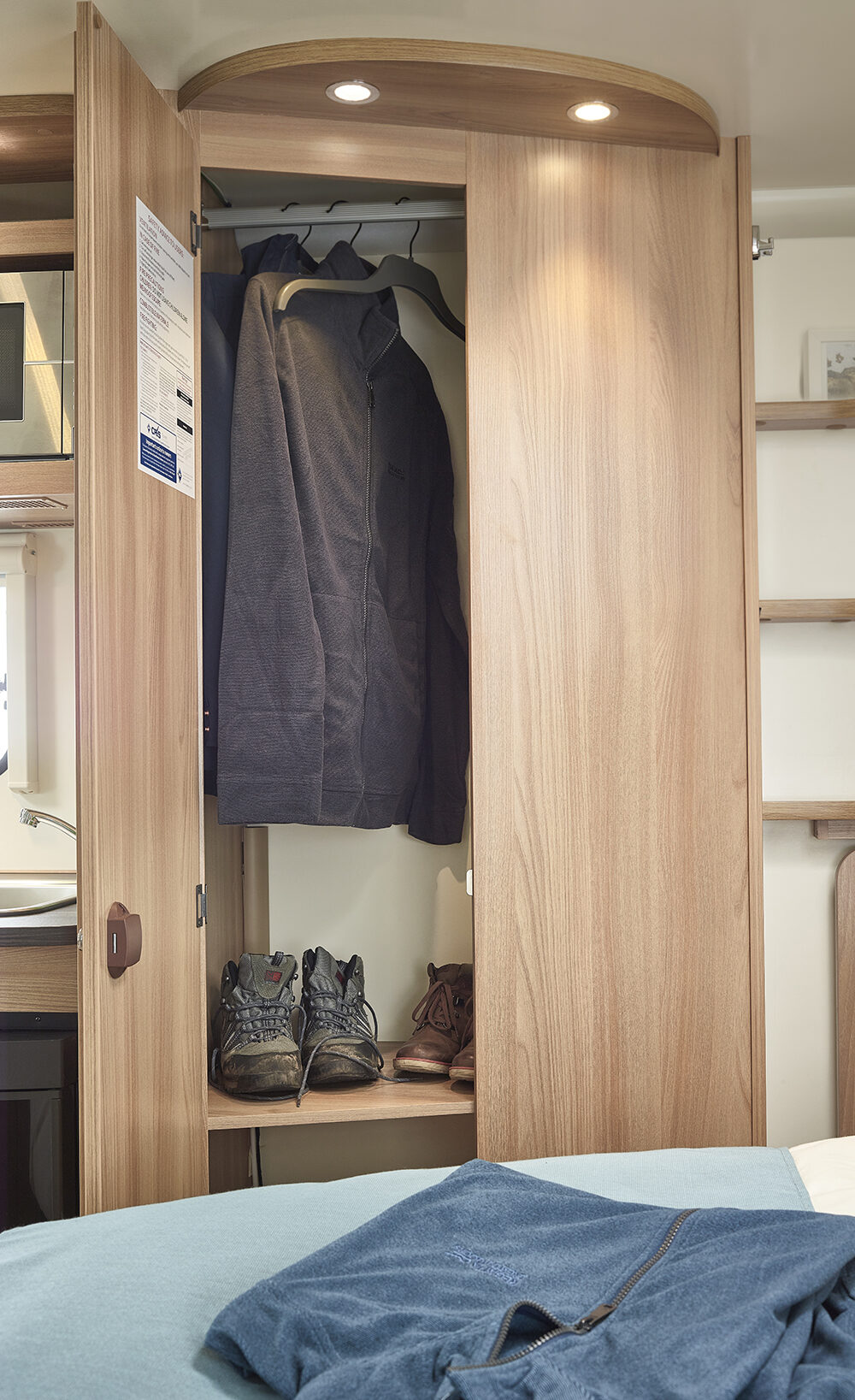

• NEW Bailey “Mendip Ash” furniture finish

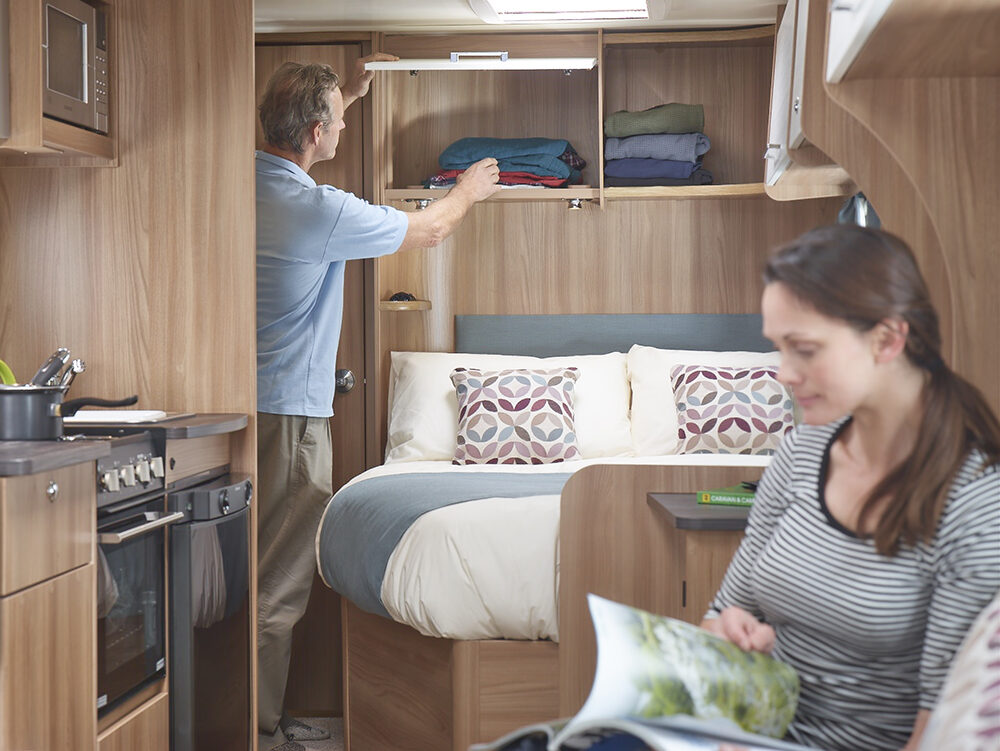

• NEW white textured single span overhead lockers
• NEW contrasting Taupe kitchen doors

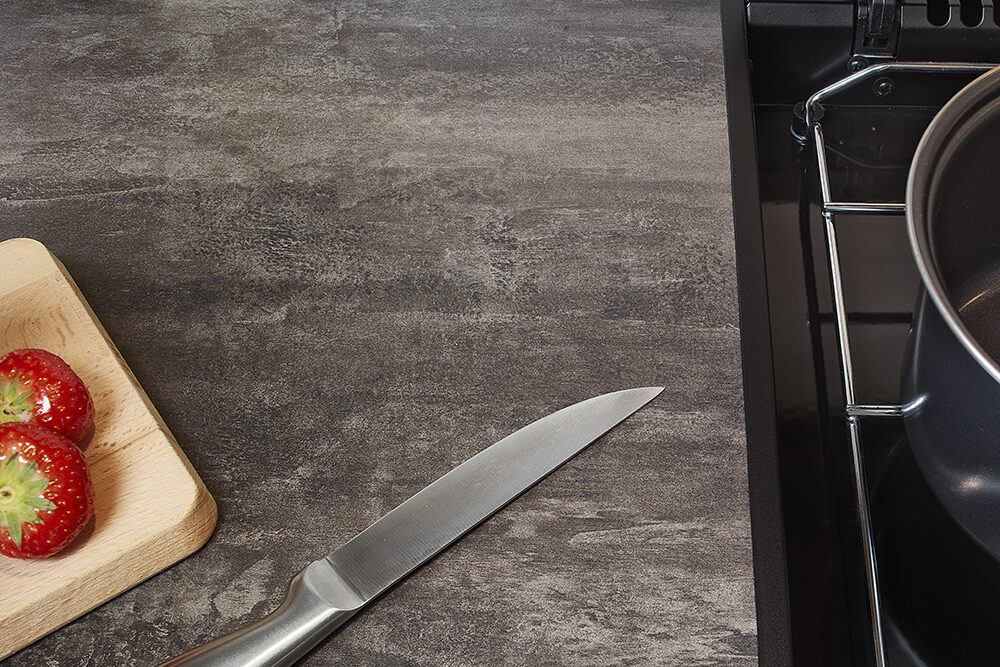

• NEW kitchen and washroom “Burnt Oak” worktop laminate

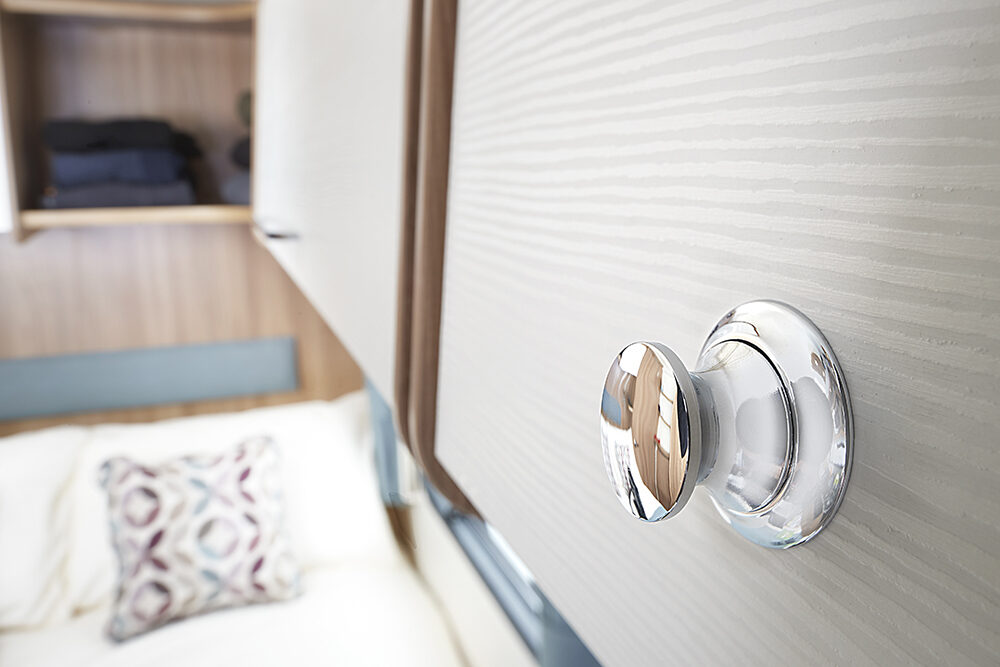

• NEW premium quality, domestic style fixtures and fittings in polished chrome finish
• NEW textured finish durable floor vinyl
• NEW Split section loose fit drop in carpets

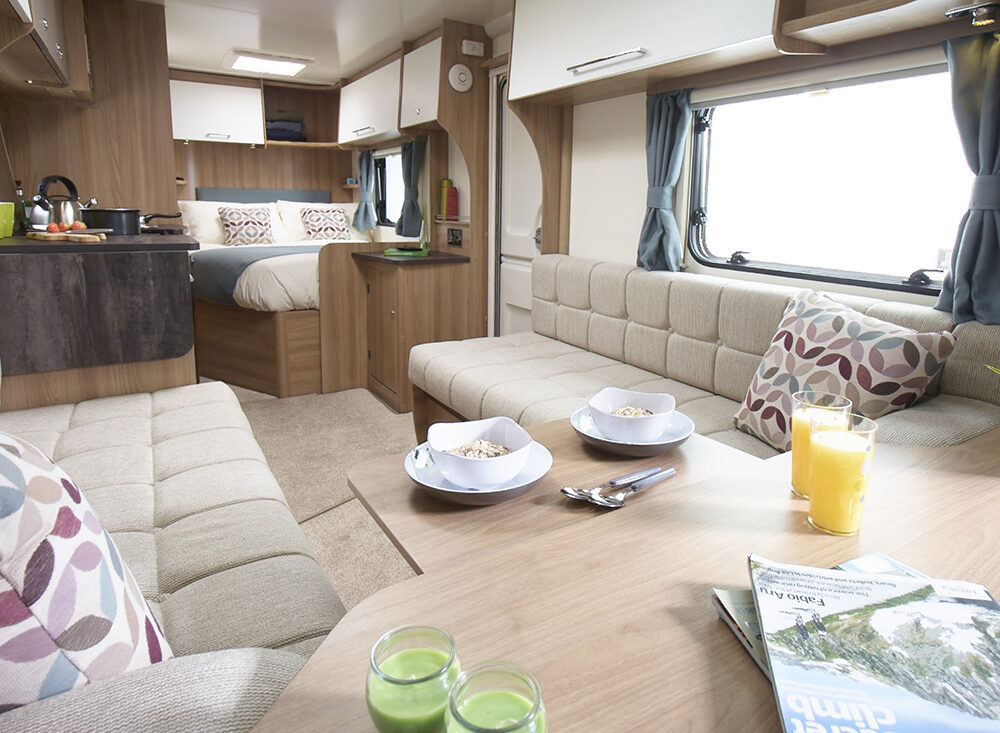

• NEW ‘Festival’ upholstery, with sprung seats and vibrant scatter cushions
• NEW Foam filled upholstery featuring premium quality fabrics, ‘Ozio’ high density filling and superior cushion construction and De-luxe sprung mattresses (model specific)
• NEW higher sofa backrest for added comfort
• NEW 2 drawer, chest of drawers unit (model specific)
• NEW wooden lighting pelmets
• Large front window shelf

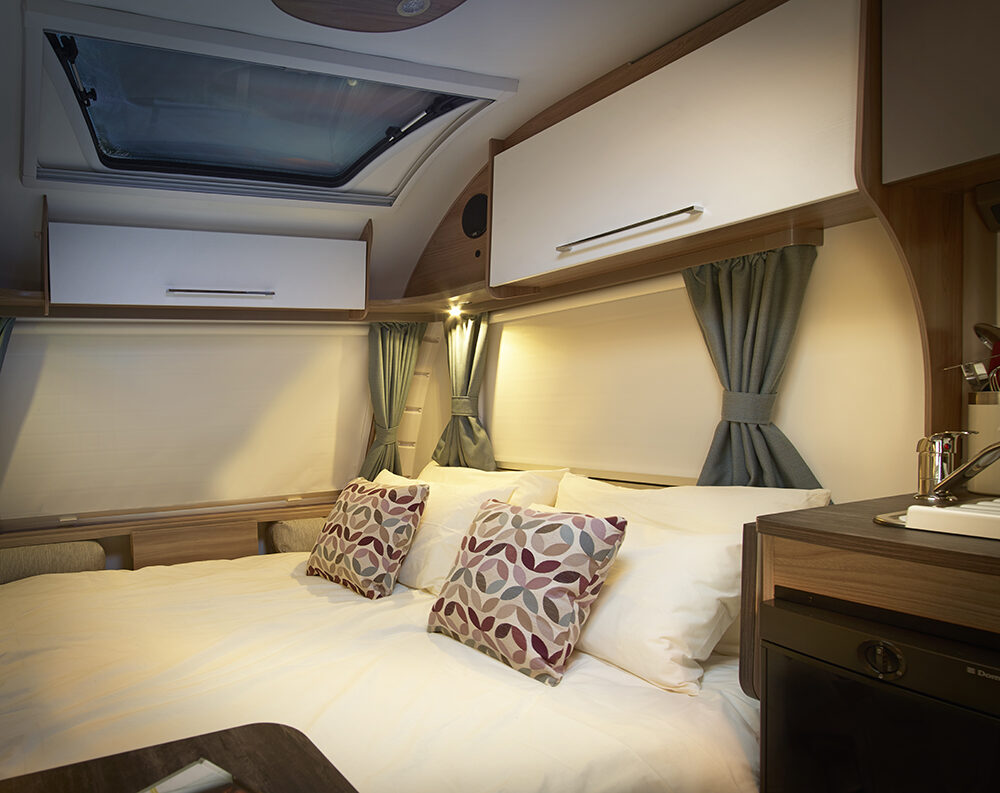

• Bed make-up system on easy glide track
• Beech sprung bed box tops for additional comfort

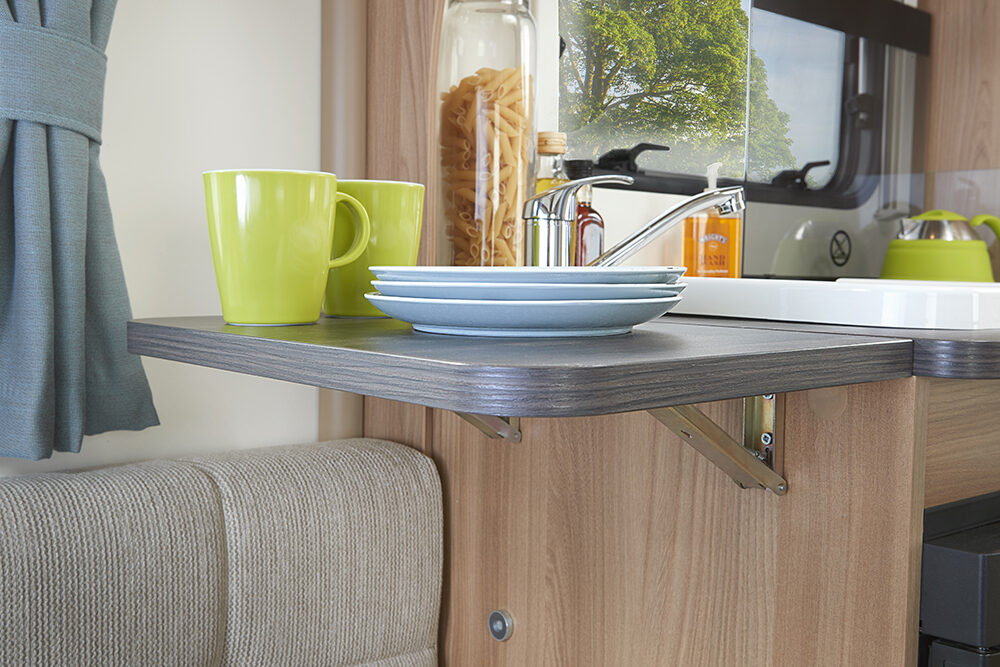

• Drop down kitchen worktop extension
• Exterior door flyscreen

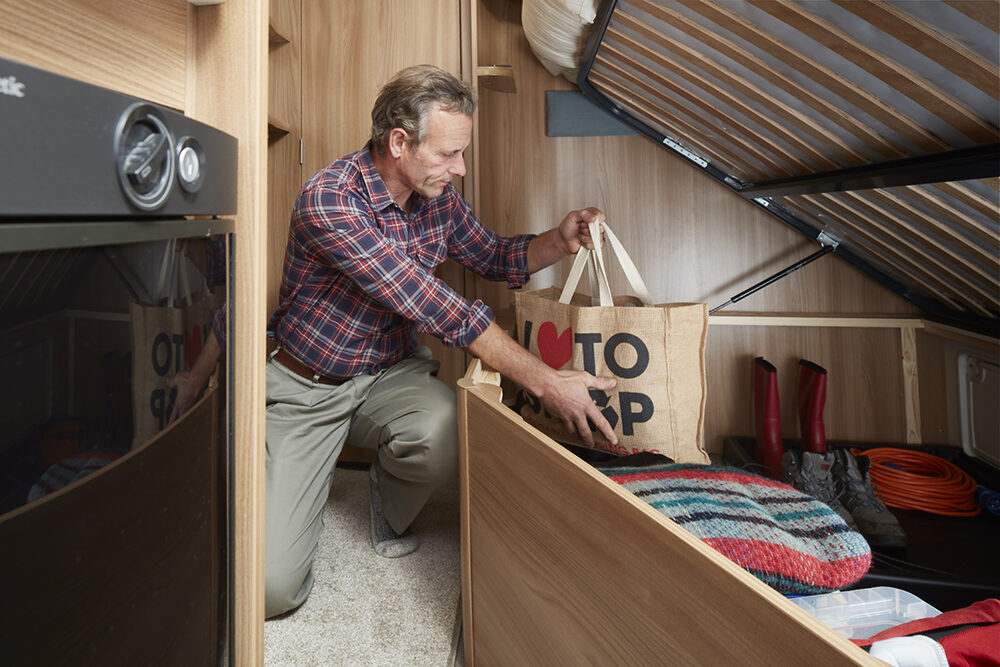

• Fixed double beds with aluminium frames and gas strut assisted opening mechanism (model specific)
• Solid domestic style washroom door

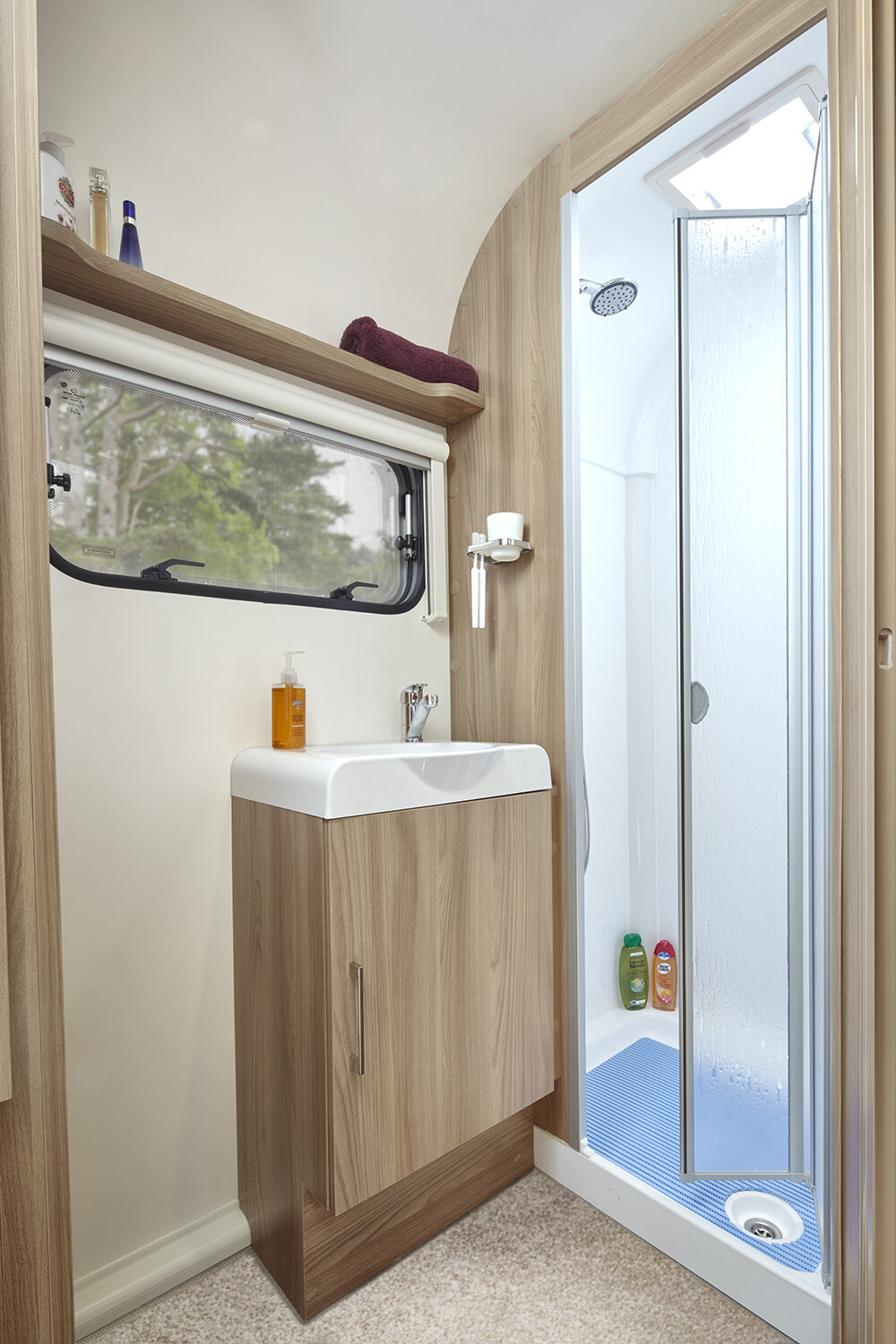

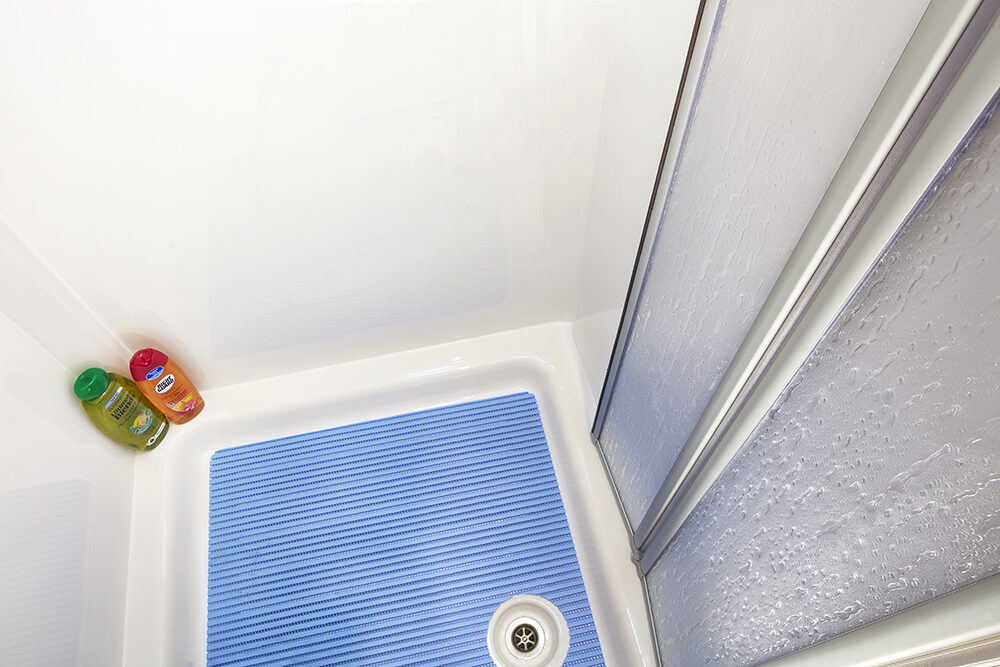

• NEW single piece fully lined shower cubicle domestic style
• NEW bathroom storage cupboard
• Swivel Thetford C-260 cassette toilet with integrated header tank

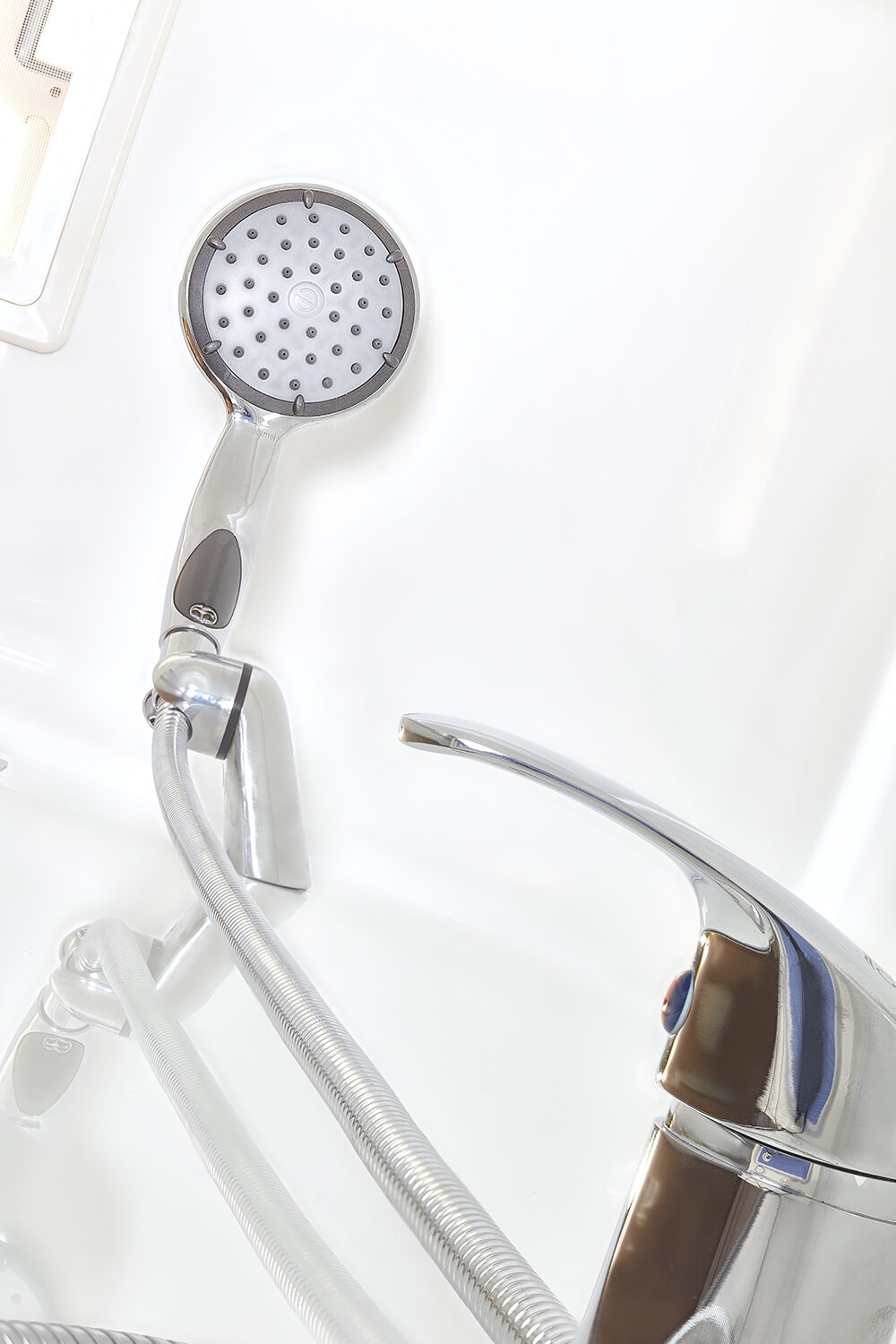

• Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
• Washroom hand basin and mixer tap

• Large kitchen window providing enhanced light in the centre of the caravan
• Midi and mini Heki roof lights throughout main habitation area
• High gloss kitchen and washroom worktop laminate
• Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
• Hartal two part exterior access door with moulded interior liner and map pocket
• Remis retractable flyscreen and sunblinds to all caravan windows
• 230v power inlet for mains hook-up
• Pre-wiring for motor mover isolation switch in convenient location

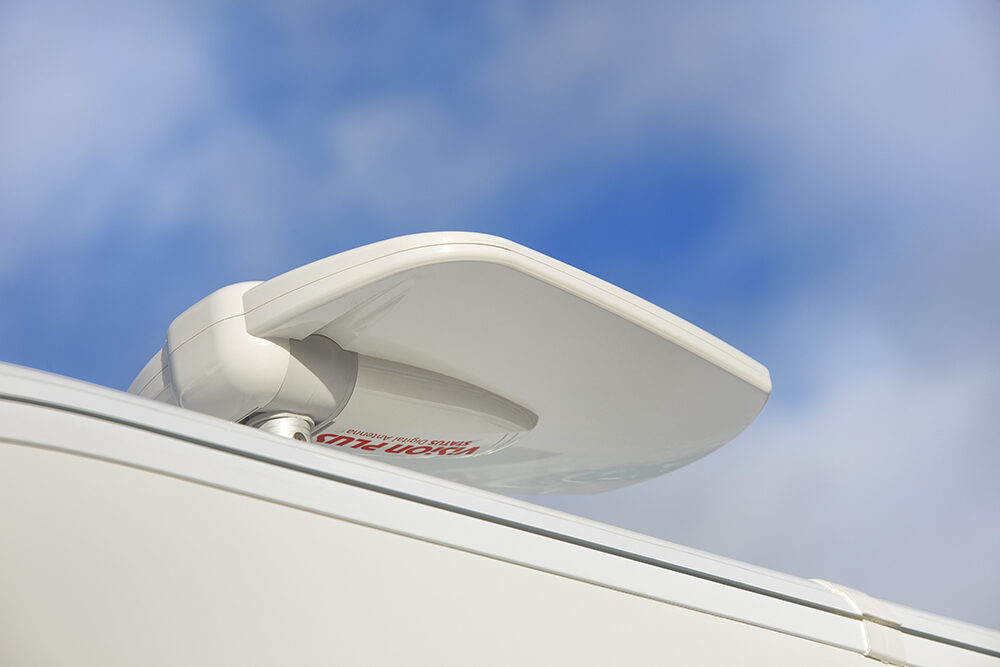

• Status 550 telescopic directional digital television aerial
• NEW Co-ordinating graphics scheme

ELECTRICAL SYSTEM

• 230v power supply with up to five new design interior sockets
• TV station with 230v, 12v and one aerial socket
• 12v internal lighting system including LED down-lighters and directional spotlights
• Centrally located under floor leisure battery storage locker
• Centrally located electrical control panel
• Domestic style consumer unit with dedicated access door
• Switch mode battery charger with 20 amps output
• RCD/MCB protection for mains electric system
• 25 metre mains connecting lead

WATER & GAS SYSTEM

• Truma Combi 6E heating system, combined water and room heating
• User friendly digital control panel with adjustable fan and water boost functions
• Dual fuel 6kw gas and 1.8kw electric power sources
• Propane/Butane 30mbm gas regulator in gas locker compartment
• Whale high flow submersible pump
• Inboard rigid pipe waste plumbing system
• NEW Stainless steel square kitchen sink and mixer tap, washing up bowl, drainer and chopping board
• Thetford C-260 cassette toilet with integrated header tank
• Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head
• NEW Large fully lined square shower cubicle with bi-fold door

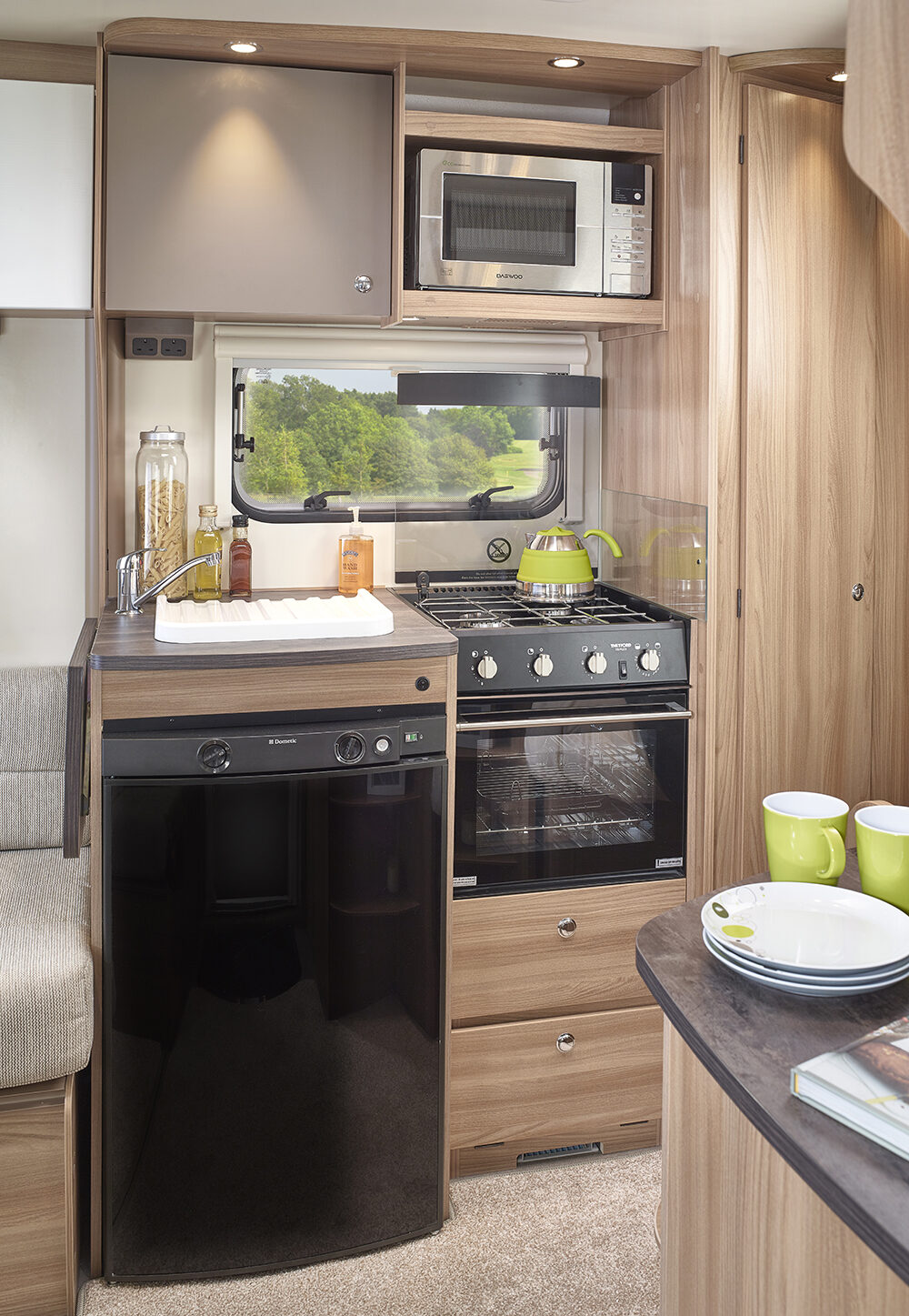

KITCHEN EQUIPMENT

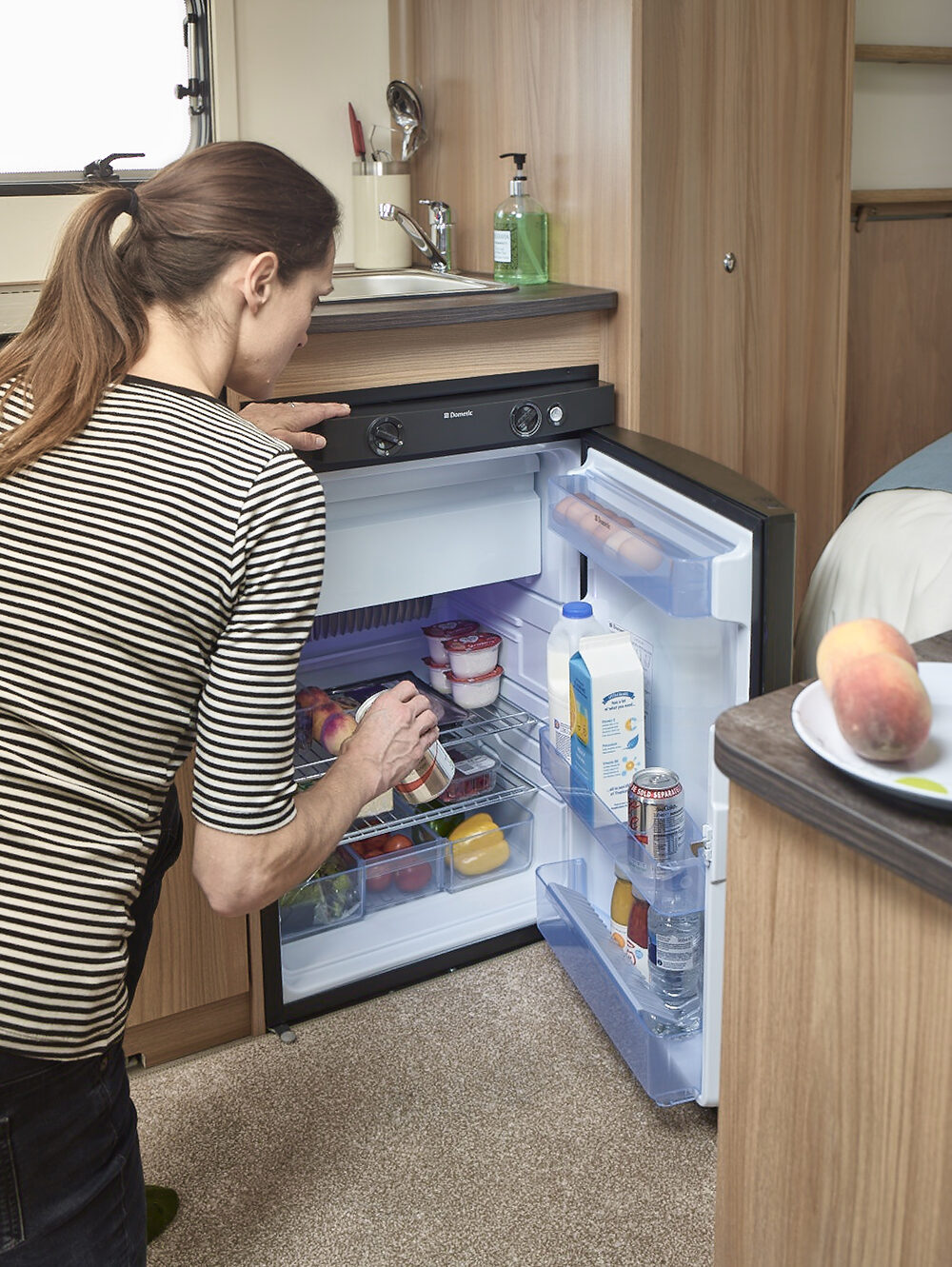

• Dometic 103 litre refrigerator with electronic ignition

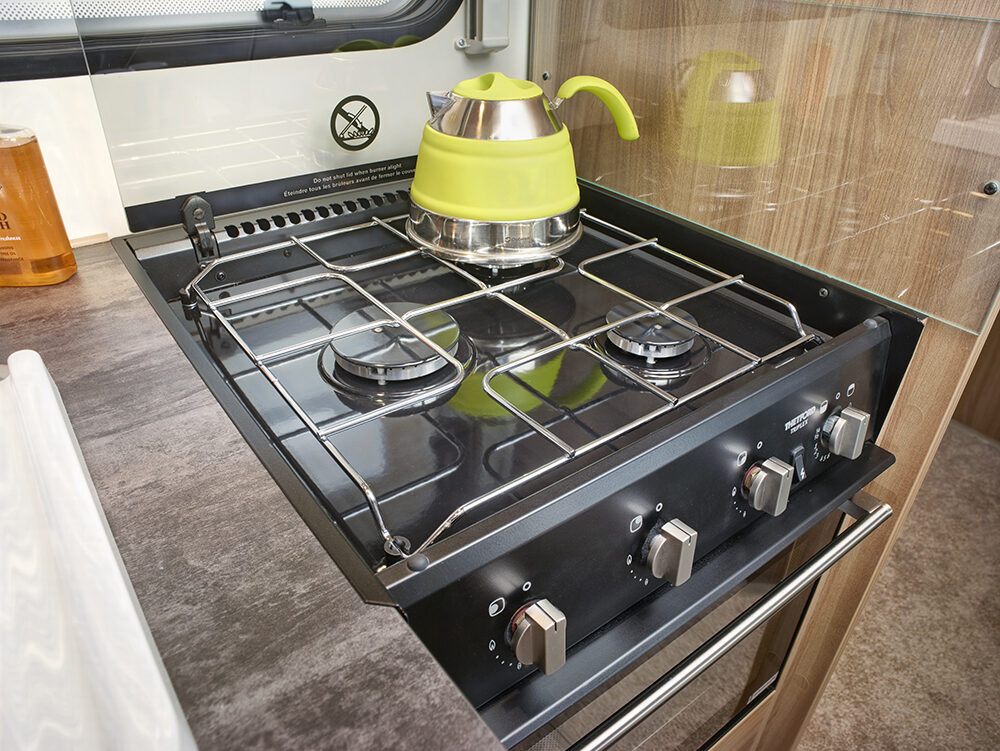

• NEW Thetford Triplex combination oven and grill, with 3 burner hob
• Stainless steel 800 watt microwave oven
• NEW stainless steel square kitchen sink, with mixer tap, drainer and chopping board

GENERAL EQUIPMENT

• Remis pleated flyscreen and blinds to principal windows
• Remis 2-part pleated flyscreen and blind to vertical skylight
• Hartal pleated full length flyscreen to exterior door
• Branded Radio, CD, MP3 player with iPod, MP3 player connection point
• Branded dual cone stereo speakers for superior sound quality

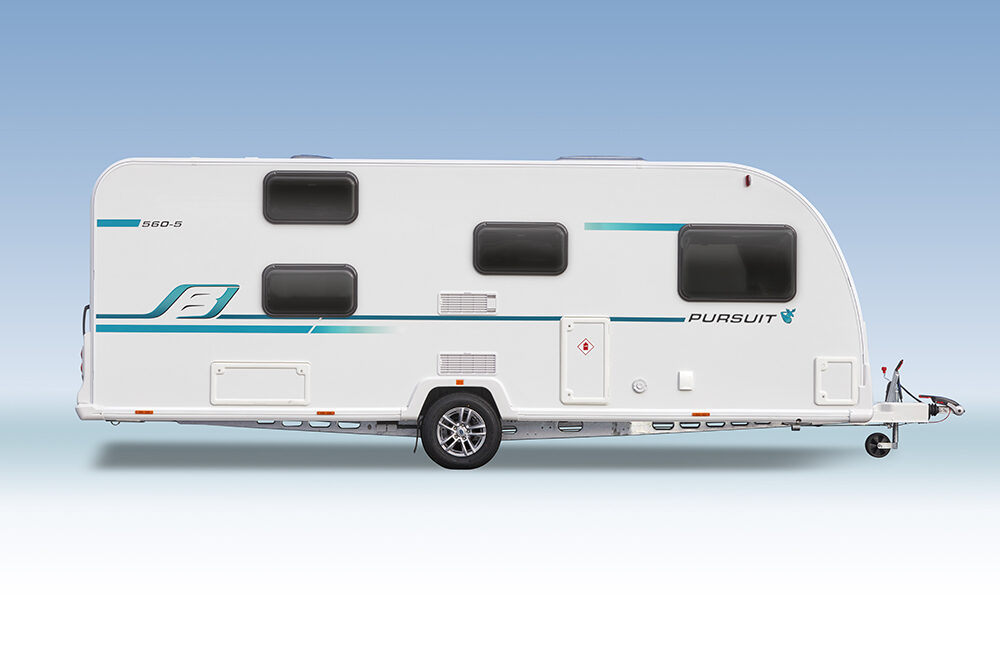

• NEW ‘Polar white’ bodyshell

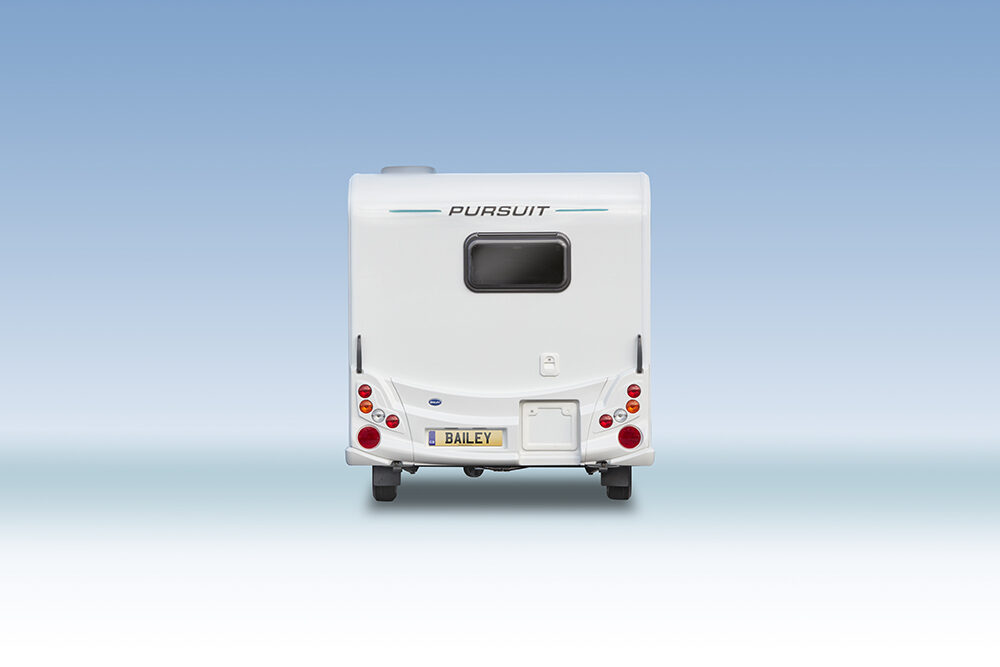

• Aero-dynamic & aesthetically enhanced rear bodyshell profile
• AL-KO one-piece galvanised steel chassis, braking system and running gear

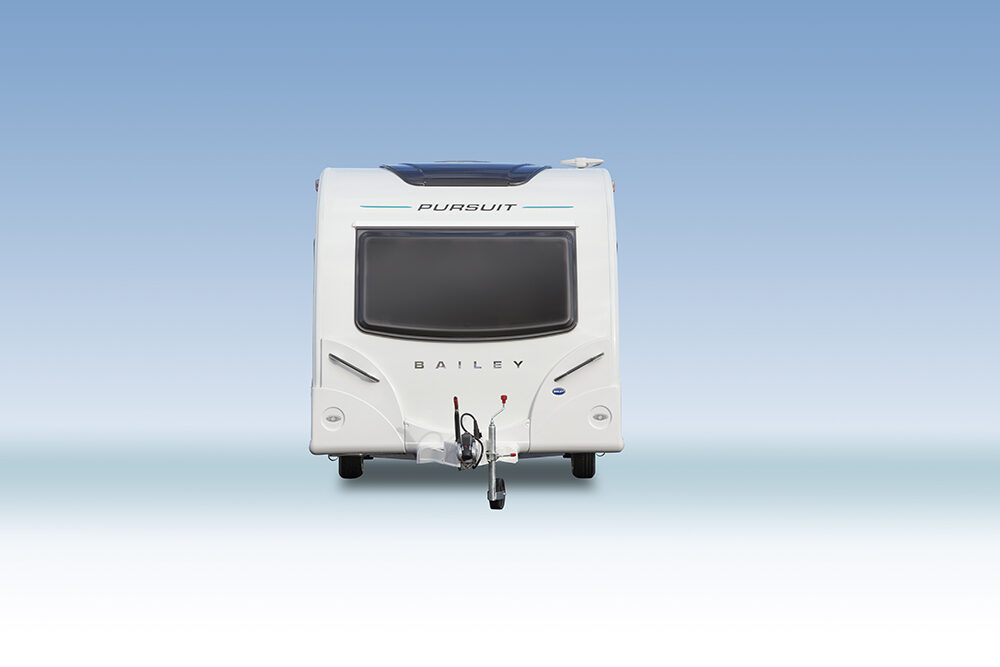

• NEW Flush-fit front impact resistant bumper with integral grab handles
• Flush-fit rear impact resistant bumper with integral grab handles

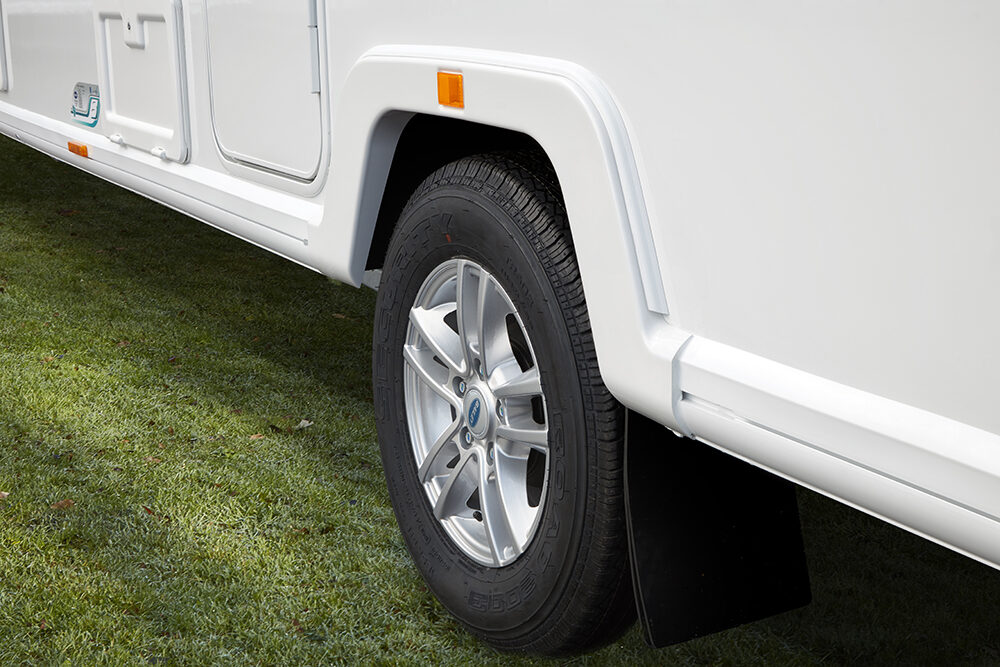

• 14” TUV tested alloy wheels
• Hartal GRP skin two part large aperture exterior door with window, blind and waste bin
• LED awning light with integral water management system

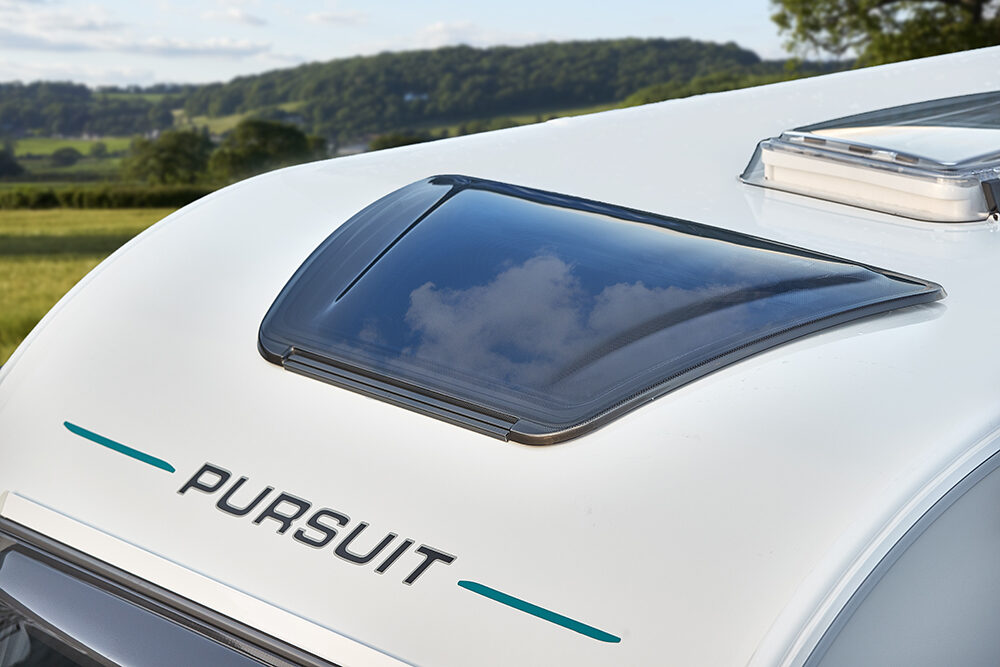

• Double glazed Polyplastic opening vertical skylight in front dome
• Double glazed Polyplastic opening windows throughout

• AL-KO AKS 3004 Stabiliser
• WSL Individually Laser Balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL Safety Bolts
• Wind down floor mounted spare wheel carrier and spare wheel (steel spare wheel)
• High security one key operation throughout
• CRiS identity number anti tamper labels attached to windows and inside gas locker
• Concealed security data chip within caravan construction
• Smoke alarm
• Carbon monoxide alarm
