Discovery D4-3

• The Alu-tech Body Shell is a structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
• It has a five part fully bonded exterior panel assembly system
• Upper body panels manufactured using superior bead application and laminating technology for a stronger bond
• Upper body panels built using a timber-free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner-wall lining
• Upper body panels cloaked in a single sheet of impact resistant GRP and an outer skin for extra durability
• It is supplied with a transferable 6 year body shell integrity guarantee and a transferable 3 year manufacturer’s components warranty
• An additional 4 year extension to the body shell integrity guarantee is available as a cost option
• It is EN-1645 Grade III classification for heating and thermal insulation (cold chamber tested)
• It is European Whole Vehicle Type Approved and certified by the National Caravan Council to be European Standard compliant

Internal Space

• Internal headroom of 1.96m (6’5”) throughout the length of the caravan
• Body width of 2.21m (7’3”)

FURNITURE & SOFT FURNISHINGs

• Bailey ‘Mendip Ash’, ‘Lana Grey’ and ‘Anthracite’ furniture finishes

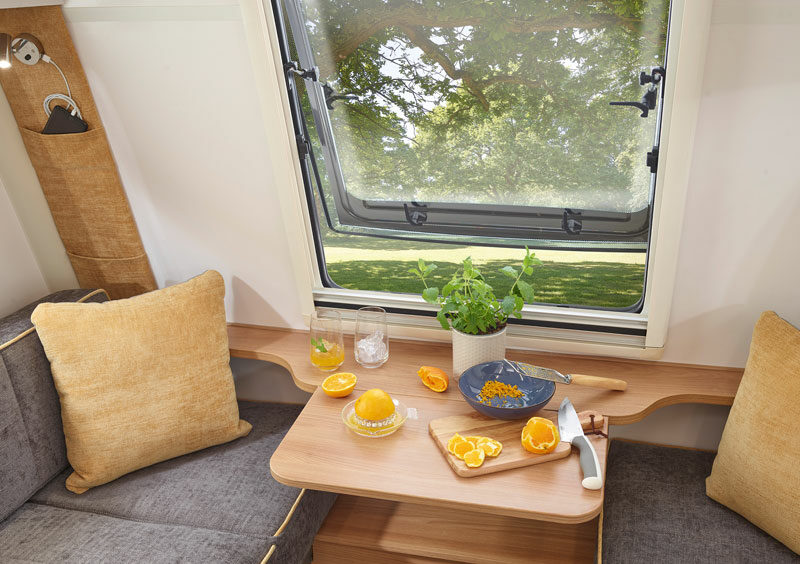

• Fold down occasional table
• Beech slat seat and bed bases with sprung hinged tops for extra comfort and ease of access
• Slatted front bed make-up system on easy glide track

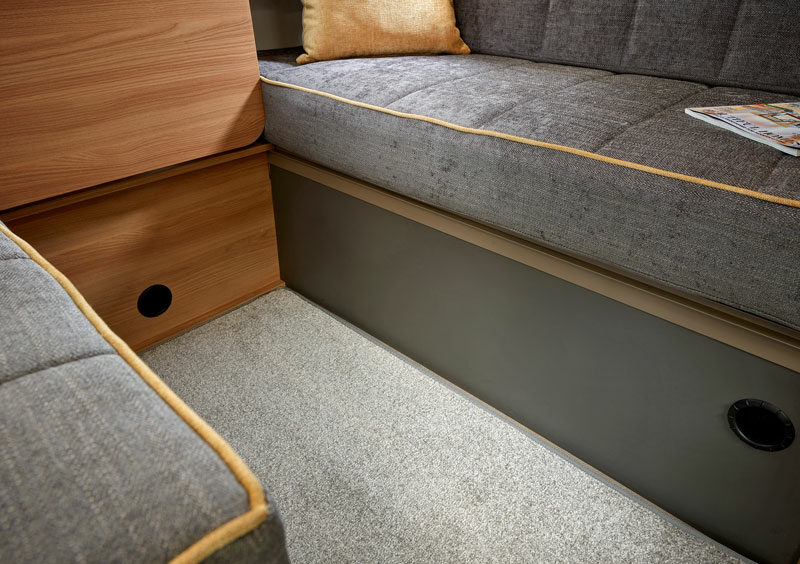

• Angled seat ventilation boards for enhanced heating efficiency

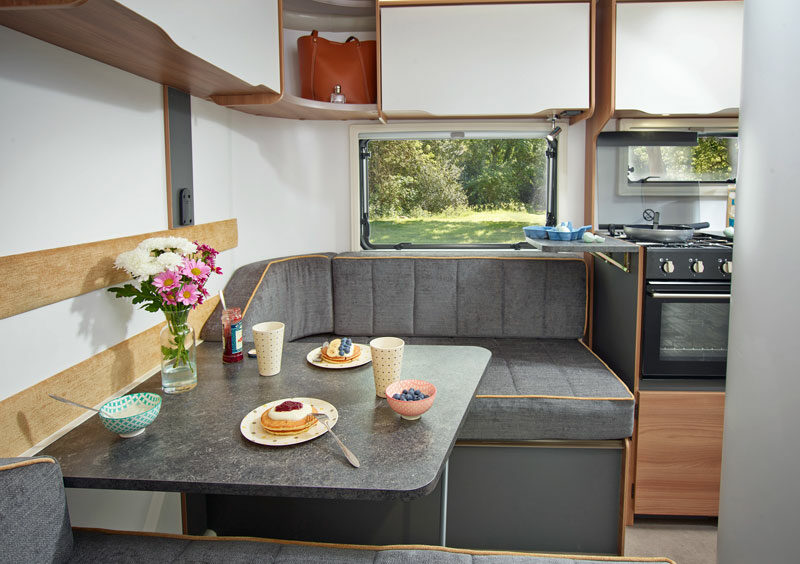

• ‘Nordic Stone’ finish freestanding table with dedicated storage
• ‘Nordic Stone’ finish wall mounted rear lounge table (model specific)
• Aircraft style overhead locker system with split level storage
• ‘Lana Grey’ matt overhead locker doors with contrast edging

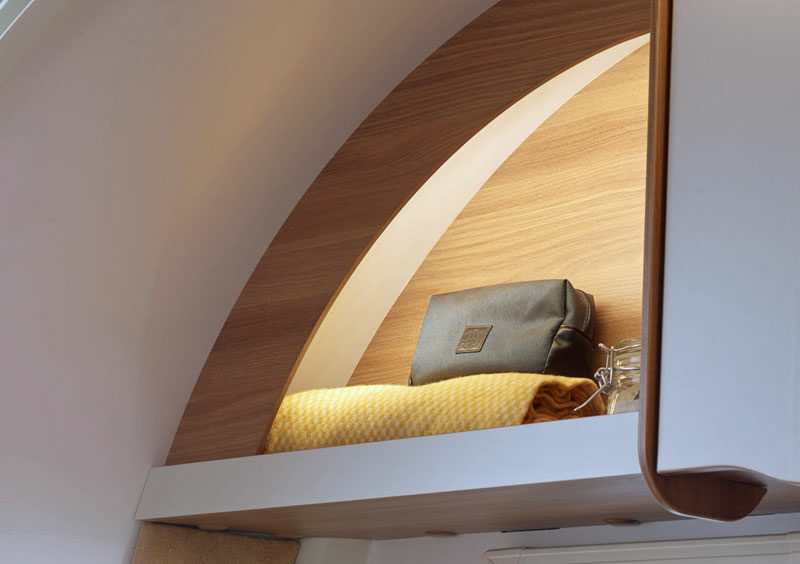

• Over-locker LED lighting
• Premium quality, domestic style fixtures and fittings in polished chrome finish
• ‘Nordic Stone’ kitchen and washroom worktop laminate (model specific)
• Drop down kitchen worktop extension
• Solid domestic style washroom door with domestic metal handle
• Bi-fold partition shower door for improved access (model specific)
• ‘Granite Stone’ fully lined shower cubicle (model specific)

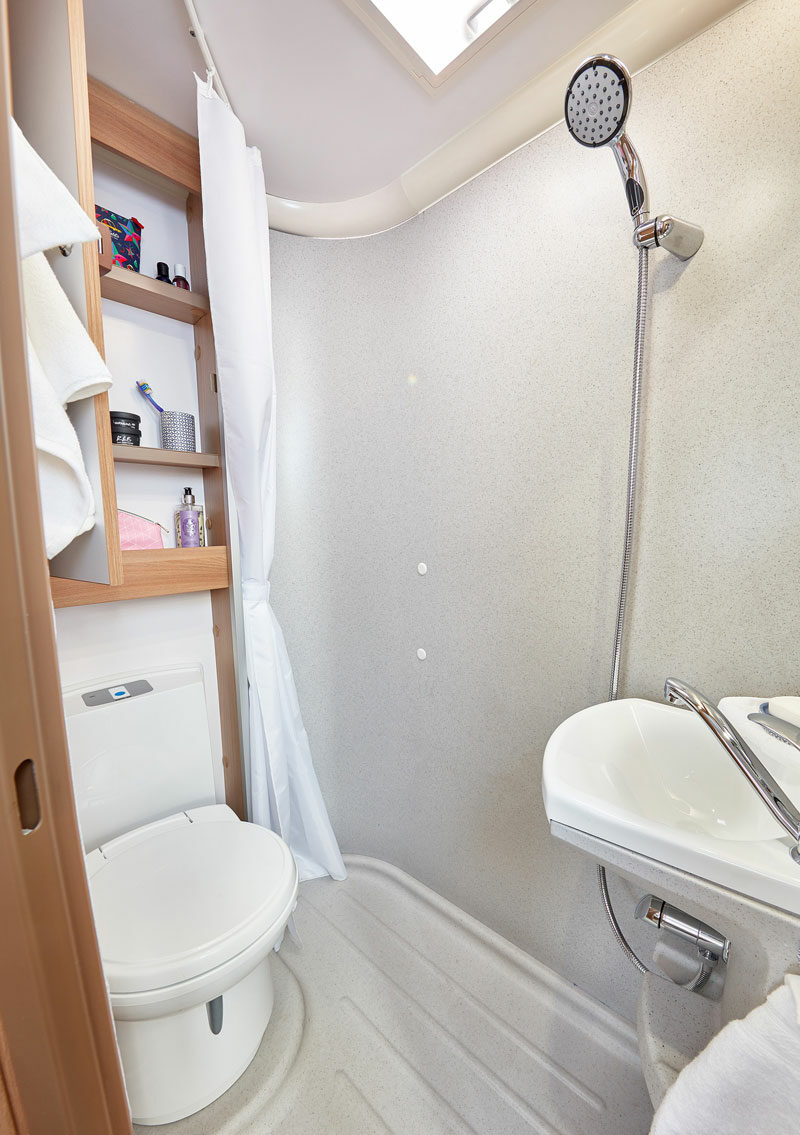

• ‘Granite Stone’ fully lined shower wet room with partition curtain (model specific)
• Bathroom storage cupboard
• Washroom hand basin and mixer tap with integrated storage (model specific)
• Fixed double beds with aluminium frames and gas strut assisted opening mechanism (model specific)
• Upholstery featuring premium quality fabrics, sprung base cushions, foam back rests and foam mattresses (model specific)
• ‘Java’ soft furnishings with two square scatter cushions
• Front corner wall-mounted storage pouches
• Textured finish durable floor vinyl
• Entrance door mat

ELECTRICAL SYSTEM

• 230v power supply with up to four interior sockets
• One TV station with 230v, 12v and one aerial socket
• 12v internal lighting system including LED down-lighters and directional spotlights

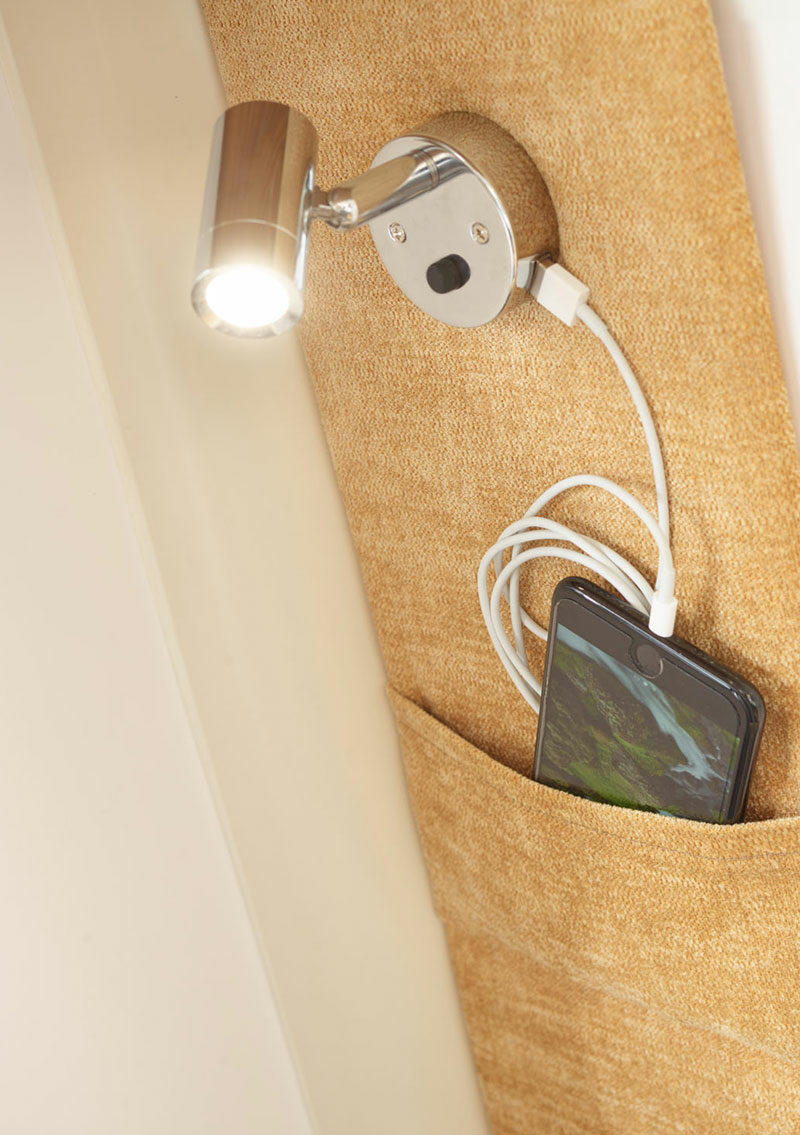

• Two USB sockets in directional spotlights
• Centrally located underfloor leisure battery storage locker
• Domestic style consumer unit with dedicated access door
• Switch mode battery charger with 20 amps output
• RCD/MCB protection for mains electric system
• Pre-wiring for motor mover (retailer fit)
• 25 metre mains connecting lead

WATER & GAS SYSTEM

• Truma Combi heating system, combined water and room heating
• Truma user friendly digital control panel with adjustable fan and water boost functions
• Dual fuel 2kw gas and 1.8kw electric power sources
• Propane/Butane 30mb gas regulator in gas locker compartment
• Truma Ultraflow submersible pump
• Outboard rigid pipe waste plumbing system
• Thetford C-260 cassette toilet with integrated header tank
• Inboard shower unit with ceramic ball mixer tap and Ecocamel shower head

KITCHEN EQUIPMENT

• Dometic 103 litre refrigerator & 12 litre freezer with electronic ignition
• Thetford Triplex combination oven and grill with 3 gas burner hob
• Stainless steel square kitchen sink with mixer tap

GENERAL EQUIPMENT

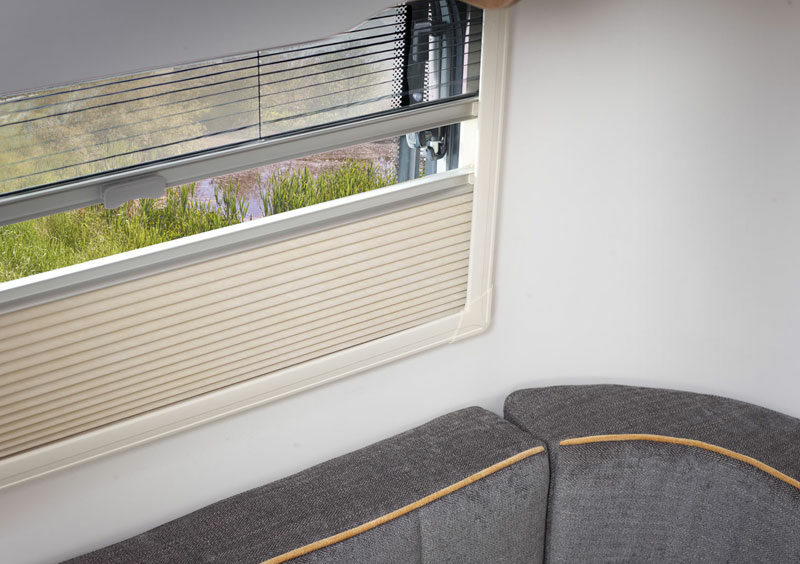

• Remis pleated flyscreen and blinds to all windows
• Hartal pleated full length flyscreen to exterior door

• Duo-tone bodyshell in ‘Polar White’ and ‘Slate Grey’
• Aero-dynamic & aesthetically enhanced wrap-around rear bodyshell profile
• AL-KO one-piece galvanised steel chassis, braking system and running gear
• Extended a-frame suitable for additional optional storage solutions
• Flush fit front impact resistant bumpers with grab handles
• Flush-fit rear impact resistant bumper
• Rear grab handles

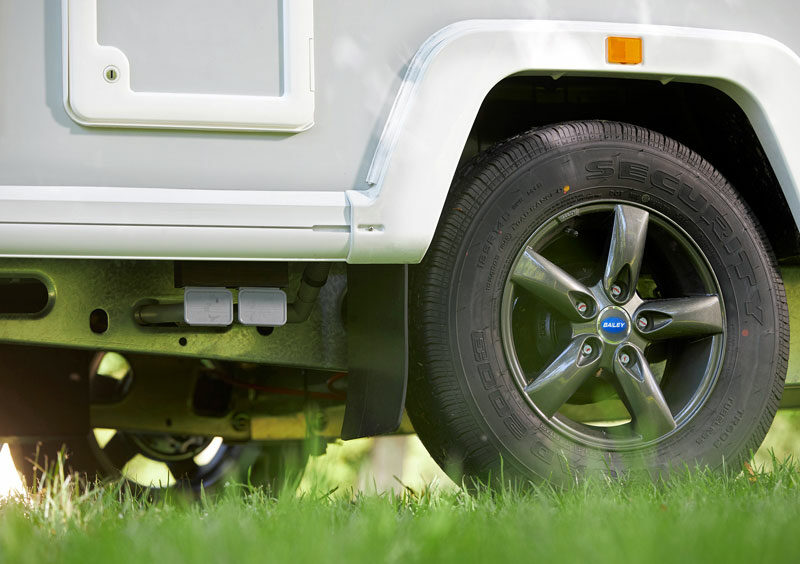

• Graphite finish 14” TUV tested alloy wheels
• Hartal GRP skin two part large aperture exterior door with coat hook
• LED awning light with integral water management system
• Aerodynamically profiled double glazed Polyplastic opening windows throughout
• Aerodynamically profiled double glazed Polyplastic opening vertical front skylight
• Modern look Bailey branded front window with darker screen print
• Midi Heki roof light in main habitation area
• Roof light located in washroom
• Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
• 230v power inlet for mains hook-up
• Status 570 telescopic directional digital television aerial
• Wrap-around graphics scheme

• AL-KO AKS 3004 Stabiliser
• WSL Individually Laser Balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL Safety Bolts
• Interior floor mounted spare wheel and tyre (steel wheel)
• High security one key operation throughout
• CRiS identity number anti tamper labels attached to windows and inside gas locker
• Concealed security data chip within caravan construction
• Smoke alarm
• Carbon Monoxide Alarm
